PEEK OFS ID Face Seal

ID Face Seals for gate valves are spring-loaded, pressure-energized lip seal that improve gate and seat service life.

Product Detail

PEEK OFS ID Face Seal

ID Face Seals for gate valves are spring-loaded, pressure-energized lip seal that improve gate and seat service life.

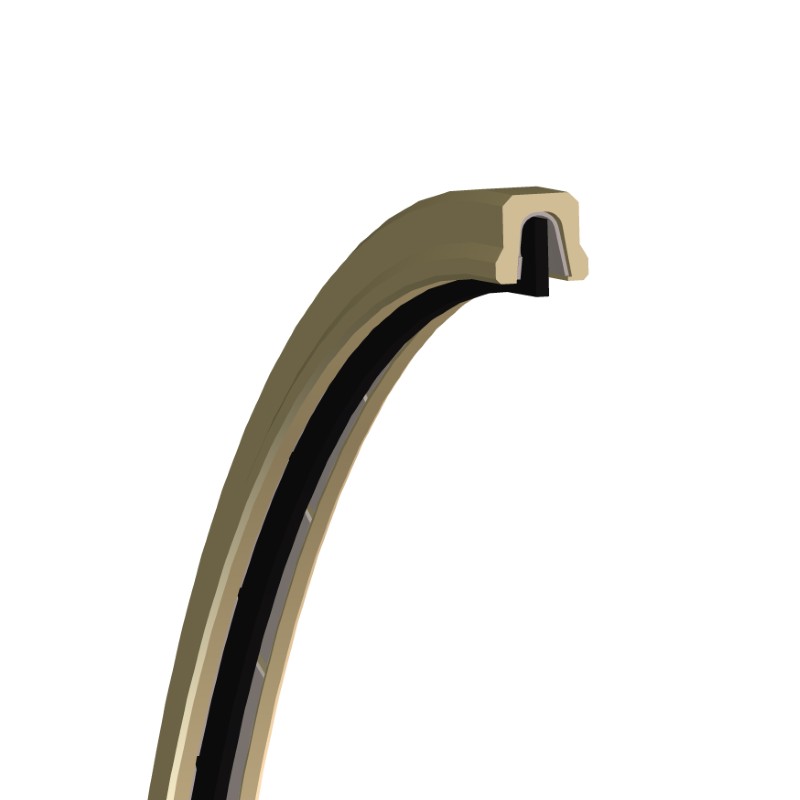

It is an end face mechanical seal with both rigid and flexible elements, which gives consistent contact at the sealing interface. ID face seals and OD face seal are combined used for valves.

JST ID/OD face seal is spring loaded with a pressure energized lip seal. It is used for the valve seat.

JST provides ID/OD face seals with two different materials. A common option is virgin peek spring energized by a stainless-steel spring. Another option is glass moly filled PTFE with stainless steel springs, which are very durable and can withstand the worst conditions. When conditions are not extreme, a more cost-effective material option is glass moly filled PTFE. This ID/OD face seal is a good choice and has very good durability.

ESB
unnamed (11)

Advantages

  1. Over 15 different ID face seal options
  2. Sizes ranging from 1-13/16” to 7-1/16”
  3. Pressures ranging from 5,000-15,000 PSI
  4. PR2 tested

Working Conditions

5000~15000PSI PU, LU, PX, LX Hydraulic fluids, crude oil, sour oil/gase, H2S, salty water PEEK, Elgiloy/SS steel, Filled PTFE

Size

2-1/16"
2-9/16"
3-1/16"
4-1/16"
5-1/8"
7-1/16"

unnamed (12)
Inch MM psi
1-13/16" 46 10K/15K
2-1/16" 52 2K/3K/5K/10K
2-1/16" 52 15k
2-9/16" 65 3K/5k
2-9/16" 65 10k
70/105
14/21/35/70
105
21/35
70
Groove OD Groove ID
64.34mm (2.533in) 57.15mm (2.250in)
92.58mm (3.645in) 85.09mm (3.350in)
77.29mm (3.043in)
Groove depth
3.10mm (0.122in)
